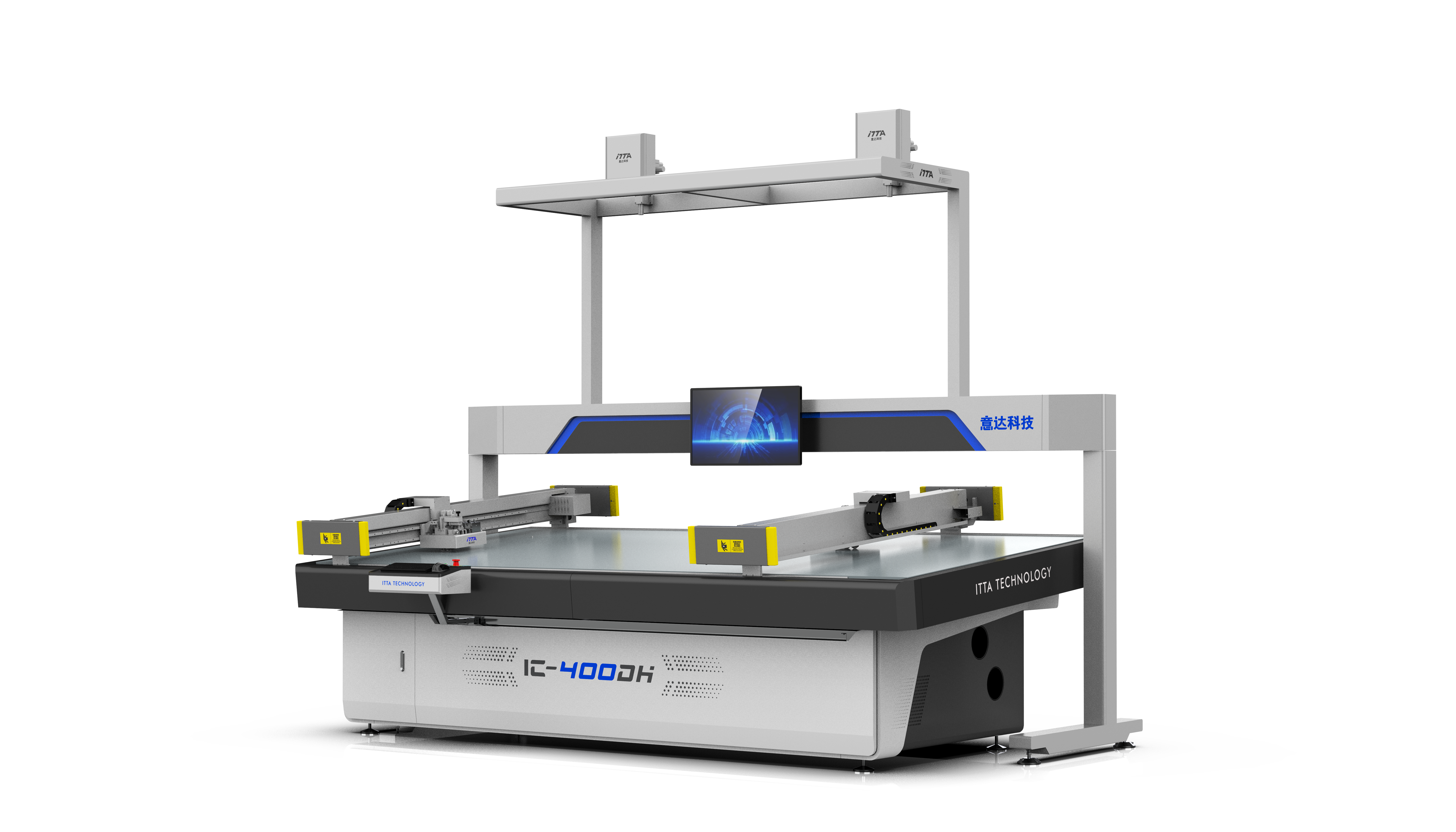

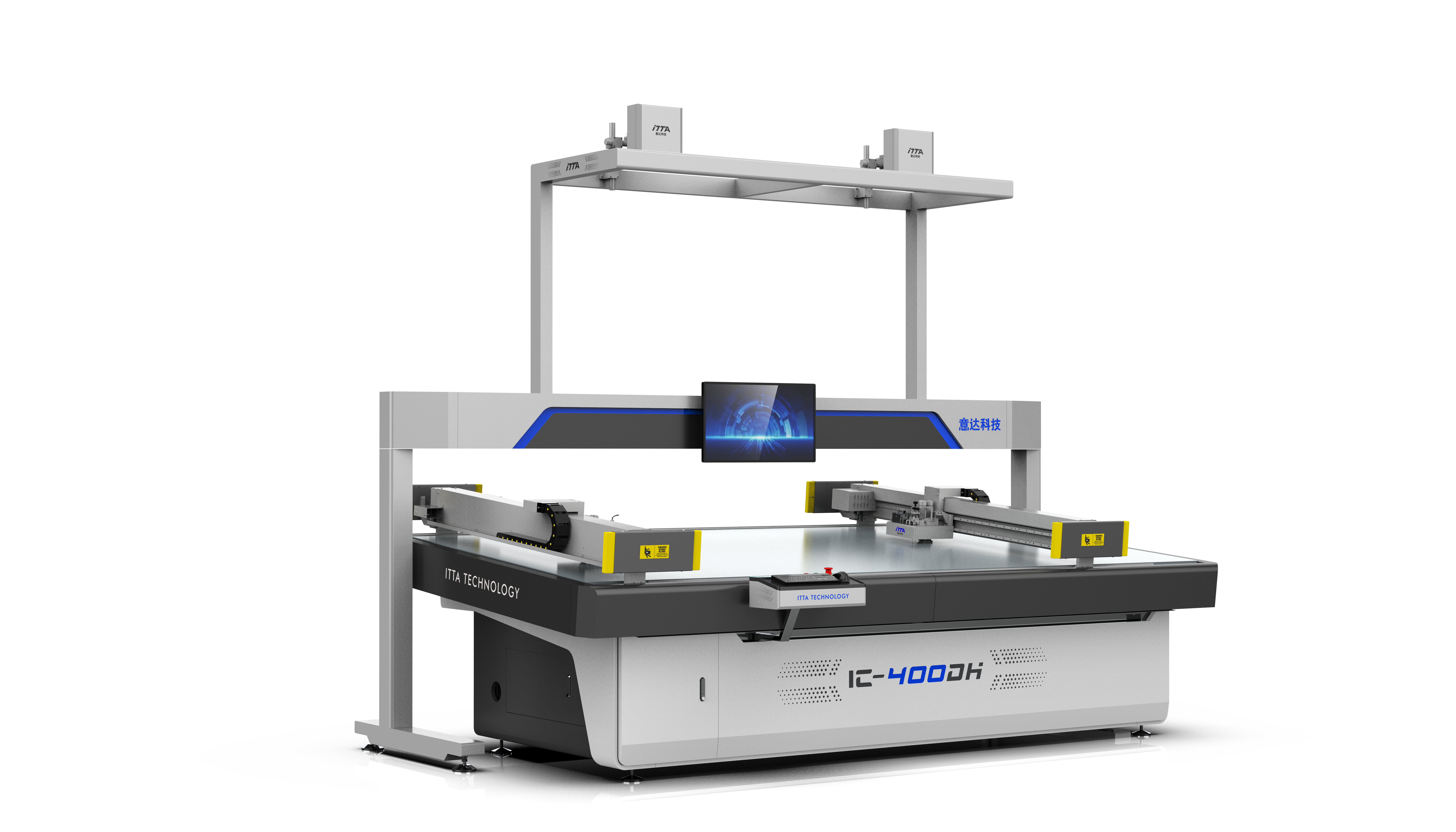

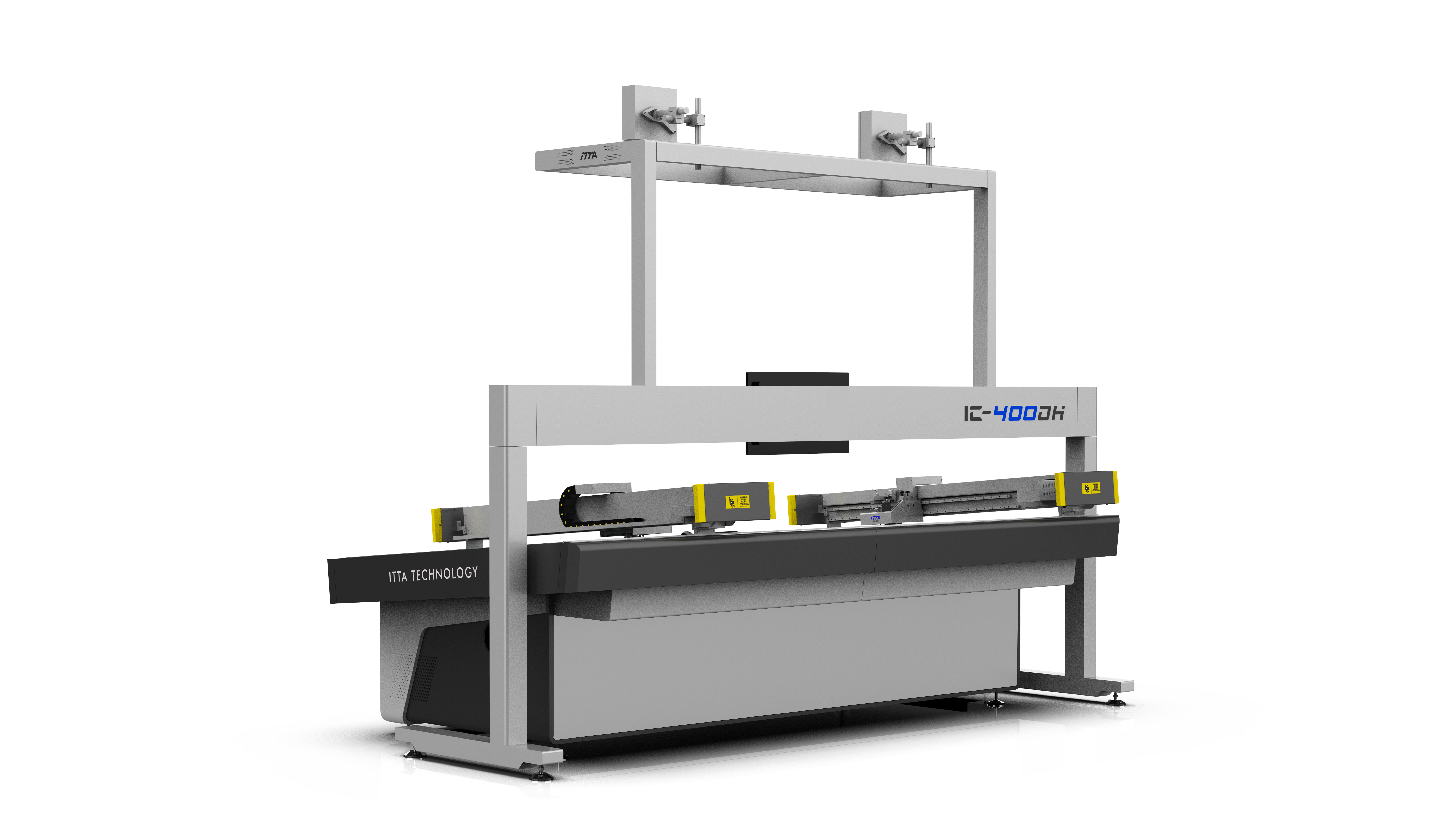

IC400DHSmart Leather Cutting Machine (Double Head)
The ITTA classic model adopts a dual zone cutting system, which can alternately cut the leather on the left and right sides, or merge the cuts. It is suitable for cutting various materials such as calf leather, lambskin, half calf leather, etc. It is widely used in multiple industries such as shoemaking, handbags, leather jackets, gloves, etc. Suitable for various application scenarios such as prefabricated houses, small-scale production, or large-scale production.
Support integration with CAD/CAM systems and factory MES/ERP to achieve digital processes from design to production, laying the foundation for intelligent manufacturing. Adopting industrial grade components and stable structural design to ensure the stability and durability of the equipment under long-term continuous operation. Equipped with comprehensive safety protection devices (such as emergency stop, protective cover, etc.) to ensure the safety of operators.
Parameter
Model | IC400DH |
Machine dimension | 4000*1840*2700mm |
Double working areas | 3000*1150mm |
Max. Cutting speed | 约3308 inches/min |
Power | 3-phase 200-400vac/50-60HZ，11KW Monophase200-240VAC/50-60HZ 2KW |
Vibration frequency of the knife | 15000-18000times/min |
Air consumption | 4-6pa |
Optional | IN300 |
