Automatic leather cutting machine IC800DHC（online workflow ）
Ideal for environments ranging from flexible custom orders to large-scale continuous production, particularly suitable for enterprises seeking an all-in-one solution that integrates scanning, nesting, cutting, and collection without the need for additional scanning equipment.

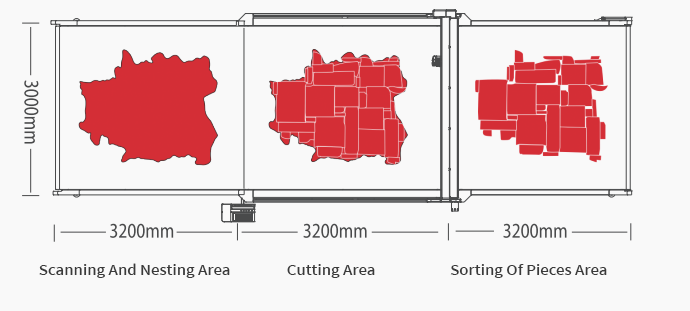

The workflow is to put the leather in the first area for leather scanning and nesting, and then send the nested leather to the second area for cutting, and in the third area for synchronous transmission and sorting of pieces, each link is independent and cooperative, and the production is efficient.
All-in-One Integrated Process: Achieves seamless "scan-cut-collect" workflow with three zones and a conveying system, minimizing interruptions.
Plug-and-Play Compatibility: Supports direct integration with mainstream ERP/MES systems, requiring no production line modifications and reducing overall ownership cost.
Stable & High Output: Capable of processing 6,500-8,000 feet of leather in a standard 8-hour shift, adapting to multi-style, high-frequency orders.
Machine dimension(LxWxH) | 10710*3580*3300mm |
Cutting areas(LxW) | 3200*3000mm |
Power | 3-phase 200-400vac/50-60Hz，15KW Monophase200-240VAC/50-60Hz 2KW |
Vibration frequency of the knife | 15000-18000/min |
Air consumption | 0.4-0.6MPa |
Max. Cutting speed | 3307 inches/min |
Optional | Single bridge and single cutting head |
Pre-sale Service
1. Welcome to send sample material to us for testing for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.
1. If there is a quality problem with the system components during the warranty period, our company's well-trained service engineers will provide telephone or on-site service at any time. For any damage caused by the quality of the equipment itself, our company is responsible for free replacement parts and services, except for conventional consumables (such as knife, punch, arbor, projector bulbs, fabric mat and so on) and accidents for user violations.
2. During the warranty period, after we receive the maintenance notice from the buyer, we will follow up and reply within 2 hours. If the fault cannot be resolved by phone, WeChat or fax, our technical service personnel can arrive within 24 hours (Excluding travel time);
3. After the warranty period, our company still provides extensive and preferential technical support services, regular maintenance and spare parts supply for the complete machine and auxiliary machines; provides full maintenance services for the products provided, and provides daily equipment-related consultation and guidance at any time , Information and data on equipment improvement and maintenance technology;
4. Our company has sufficient spare parts and can provide technical and spare parts services to the demander in time to meet the needs of equipment operation and maintenance;
1) What services do you provide to assist production？
Comprehensive Training Support: Offers 7-14 days of on-site training and follow-up sessions to ensure sustained operational stability.
2) Which countries are your machinery sold to?
Our leather cutting machine sell all over the world, such as United States, Spain,Portugal,Vietnam, India, South Africa, Malaysia,Canada,Mexico,Colombia,Brazil,Chile,Korea, Japan and many other countries.
