IC800DHC
Automatic leather cutting machine （Offline nesting）

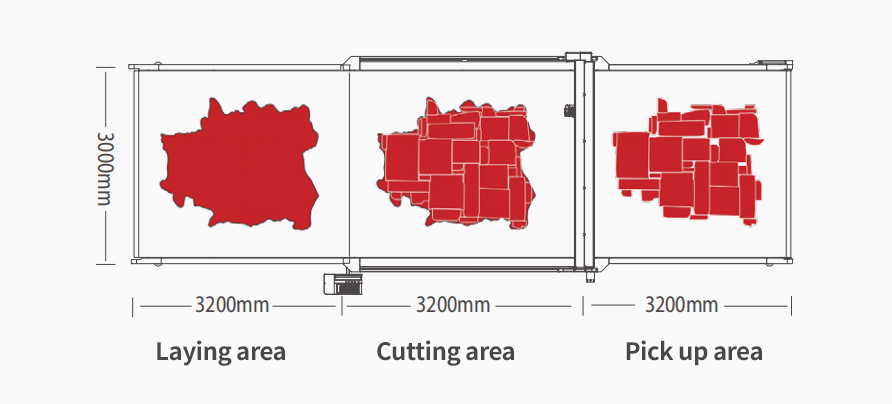

The IC800DHC intelligent offline leather cutting machine features a three-stage design, with three working areas corresponding to the three production stages which are nesting, cutting and collecting parts. A conveyor belt connects these areas to ensure uninterrupted production.
ITTA offline leather cutting machine must be used in conjunction with an ITTA intelligent leather scanner. This separates the scanning, nesting and cutting processes, allowing them to operate independently without interfering with each other and improving production efficiency.
The IC800DHC's workflow involves scanning and nesting the leather using an ITTA intelligent leather scanner (such as the IN400A or IR3000). The leather is then manual transfer to the IC800DHC, where it is projected on the working table. After nesting, the leather is then transferred via a conveyor belt to the cutting area for cutting. After cutting, the leather is then transferred to the receiving area via the same conveyor belt. The independent nesting, cutting and collecting processes further improve production efficiency.
According to actual customer feedback, a 60 feet size cowhide can be cut less than 3 minutes and the daily output can reach 5,000-7,000 feet of leather, which is equivalent to the daily output of 3-5 experienced employees.
PARAMETERS
| Machine dimension | 10740x3580x3600mm |
| Laying area | 3200x3000mm |
| Cutting area | 3200x3000mm |
| Pick up area (optional) | 3200x3000mm |
| Power | 3-phase 200-400vac/50-60HZ，7.5-15KWMonophase200-240VAC/50-60HZ 2KW |
| Vibration frequency of the knife | 15000-18000/min |
| Air consumption | 4-6pa |
| Max. Cutting speed | 3307 inches/min |
| Optional leather scanning machine | IN400A/IR-3000 (scanning machine) |
Pre-sale Service
1. Welcome to send sample material to us for testing for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.
After-sale Service
1. After the final acceptance of the equipment is signed, the warranty period of the whole machine is one year;
2. If there is a quality problem with the system components during the warranty period, our company's well-trained service engineers will provide telephone or on-site service at any time. For any damage caused by the quality of the equipment itself, our company is responsible for free replacement parts and services, except for conventional consumables (such as knife, punch, arbor, projector bulbs, fabric mat and so on) and accidents for user violations.
3. During the warranty period, after we receive the maintenance notice from the buyer, we will follow up and reply within 2 hours. If the fault cannot be resolved by phone, WeChat or fax, our technical service personnel can arrive within 24 hours (Excluding travel time);
4. After the warranty period, our company still provides extensive and preferential technical support services, regular maintenance and spare parts supply for the complete machine and auxiliary machines; provides full maintenance services for the products provided, and provides daily equipment-related consultation and guidance at any time , Information and data on equipment improvement and maintenance technology;
5. Our company has sufficient spare parts and can provide technical and spare parts services to the demander in time to meet the needs of equipment operation and maintenance;
6. Our company regularly arranges project engineers to visit the user site for free technical return visit services;
FAQ
1) Where is your equipment applied to?
Our cutting Machine is suitable for all kind of material, leather,PU,fabric,pvc,eva and so on.
2) What are the advantages of your equipment?
By using ITTA cutter, you can monitor end-to-end process and take complete control of all the machining process. The whole machining process will be done smoothly, which will greatly improve production efficiency.
3) Which countries are your leather machinery sold to?
Our leather cutting machine sell all over the world, such as United States, Spain,Portugal,Vietnam, India, South Africa, Malaysia,Canada,Mexico,Colombia,Brazil,Chile,Korea, Japan and many other countries.
