When leather workshops and manufacturing plants look for accuracy and consistency in shaping materials, one of the most reliable solutions is a CNC blade cutting machine. At Guangdong ITTA Digital Intelligence Technology Co., Ltd., our advanced leather cutting machine models transform digital designs into perfectly shaped pieces with minimal waste. These machines use computer-guided knife systems rather than heat-based tools, which makes them especially effective for natural materials like leather where clean edges and preserved texture are crucial.
The operation of a CNC blade cutting machine can be broken into a sequence of steps that take a digital design and translate it into a tangible, accurately cut part.
Design input – The process begins with creating or importing a digital pattern, usually in standard CAD or vector file formats. Customers can design their patterns independently or rely on pre-set templates that can be adjusted easily for size and shape variations.
Nesting – Once the design is uploaded, the nesting process arranges the parts on the leather hide to use the maximum area and reduce leftover waste. Advanced nesting software can even analyze grain direction and defects on the hide to position pieces more intelligently.
CAM and toolpath generation – The system automatically generates toolpaths that instruct the cutting head where to move, how deep to cut, and what speed to maintain. Multiple passes can be programmed for thicker materials, ensuring smooth edges without stressing the leather.
Machine setup – Operators load the leather onto the workbed, secure it with vacuum suction or clamping, and select the correct blade type based on material thickness. Some machines also feature automatic tool changers, making it quicker to switch between blade types when different cutting jobs are scheduled.
Cutting process – Guided by the controller, the machine executes precise cuts. Depending on the configuration, it can cut multiple layers of thin leather simultaneously, dramatically increasing throughput for mass production.
Inspection and finishing – Finally, parts are checked for accuracy and surface quality. Because of the clean blade action, most pieces require little or no post-processing, which saves time compared to manual cutting or less precise machinery.
This workflow demonstrates how leather moves from a digital file into physical production with speed and reliability.

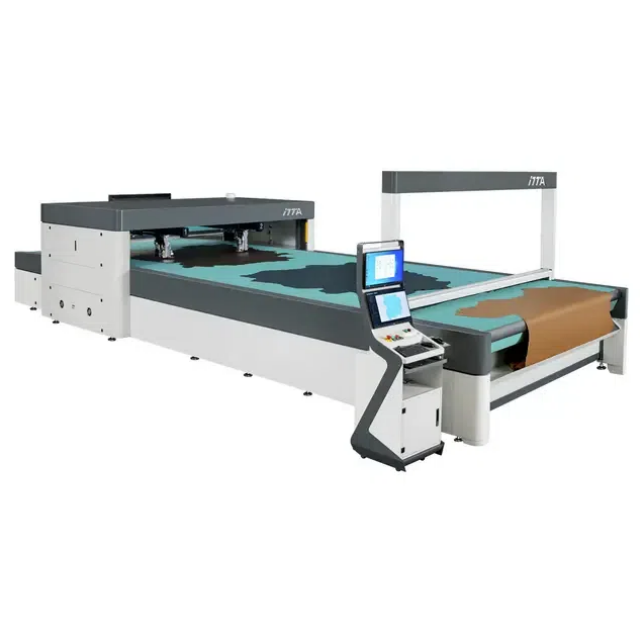

A CNC blade cutting machine integrates several specialized parts that work together seamlessly:
Controller and PC interface – The “brain” of the system, where files are imported, jobs are queued, and operators adjust cutting settings. User-friendly interfaces allow even less experienced staff to manage complex projects with ease.
Motion system – Precision axes powered by servo motors or stepper drives guide the blade in multiple directions. Smooth motion ensures accurate cuts even on curves and complex geometries, which is particularly important when producing decorative leather goods or automotive interiors.
Cutting head – The heart of the machine. Depending on the application, it may use an oscillating knife for thicker leather or a drag knife for lighter materials. Some models even combine both mechanisms for maximum flexibility.
Blade types – Various blades can be fitted, each with different geometries suited for thickness and grain type. Having multiple options allows the same system to handle anything from soft upholstery leather to heavy saddle hides.
Workbed and vacuum system – The flat surface supports the material, while suction holds hides securely in place, preventing slippage during cutting. This stability ensures that even irregular hides are cut consistently from edge to edge.
Together, these elements ensure efficiency and precision in leather part production.
The cutting head determines the quality of the finished product. Two main mechanisms are common: oscillating knives and drag knives.
Oscillating knives – These operate by rapidly vibrating the blade up and down at high frequency while the head moves along the cutting path. This dual motion allows the blade to pierce thick or fibrous materials cleanly. For leather with varying grain or density, oscillation ensures smooth edges without tearing.
Drag knives – Instead of vibrating, the drag knife simply follows the direction of movement, pivoting naturally as the toolpath changes. This is effective for thinner or more uniform materials where less cutting force is required.
By selecting the correct mechanism, manufacturers ensure each type of leather is processed in the most effective way.
The choice of blade has a significant impact on cut quality.
Thickness – Thicker leather demands stronger, longer blades that can penetrate fully without bending.
Rake or hook angle – Adjusting blade geometry allows better penetration for tough fibers or smoother finishes for delicate hides.
Material – Blades are usually made of high-strength steel or tungsten to withstand continuous cutting without dulling.
Disposable vs resharpenable – Some operations use disposable blades for convenience, while others invest in resharpenable options for long-term economy.
Choosing the right blade geometry is critical for reducing waste and maintaining consistent edge quality.
Modern CNC blade cutting machines are not only mechanical systems but also advanced software-driven platforms.
Nesting efficiency – Auto-nesting algorithms arrange multiple shapes within a single hide to minimize waste. This is particularly valuable given the irregular natural shape of leather. More advanced programs can even recognize defects or scars in the hide and avoid those zones automatically.
File compatibility – The machines typically accept formats such as DXF, PLT, or AI files, making it easy for designers and manufacturers to share and adjust patterns. Integration with ERP or production management software further streamlines workflow.
Production scheduling – Operators can queue multiple jobs, allowing the system to run efficiently across shifts. This is essential for high-volume factories handling diverse orders, such as automotive seating and footwear manufacturing.
Throughput improvement – By combining nesting with automated toolpath optimization, production can run continuously with minimal operator intervention. Real-time monitoring systems also alert users to blade wear or machine errors, minimizing downtime.
This level of software integration transforms leather cutting into a lean, scalable process that balances efficiency with material conservation.
Even the best systems require careful adjustment for challenging materials like leather. Here are some common issues and solutions:
Slippage on fibrous grains – If hides shift during cutting, adjusting vacuum pressure or clamp strength will stabilize the material.
Inconsistent thickness – Leather often varies in density across a single hide. Adjusting cutting depth or switching to an oscillating blade can resolve incomplete cuts.
Torn or rough edges – This may indicate a dull blade, incorrect blade angle, or feed rate that is too high. Regular blade changes and speed calibration are essential.
Residue buildup – Natural oils and fibers can accumulate on the blade, requiring periodic cleaning to maintain performance.
By monitoring these details, manufacturers maintain consistent quality and minimize downtime.
Guangdong ITTA Digital Intelligence Technology Co., Ltd.’s CNC blade cutting machines, with their precision, efficiency, and material-friendly design, have become a core production tool across multiple leather-related industries. Below are the key application directions and real-world cases that demonstrate their practical value.
Footwear production relies heavily on consistent cutting of leather components (e.g., uppers, linings, insoles) with clean edges and accurate shapes—requirements that align perfectly with the capabilities of ITTA’s CNC blade cutting machines. These machines handle various leather types (from soft sheepskin for luxury shoes to durable cowhide for work boots) and solve industry pain points such as material waste from manual nesting and uneven edges from traditional die-cutting.
Background: The factory produced 5,000 pairs of men’s leather shoes monthly, using manual marking and die-cutting. It faced two critical issues: ① 15-20% material waste due to inefficient manual nesting of shoe uppers and insoles; ② frequent rework (8-10% of parts) caused by uneven edges on leather linings, which affected sewing accuracy.
Solution: The factory adopted ITTA’s CNC blade cutting machine (equipped with auto-nesting software and oscillating knife heads). The machine’s software analyzed leather hide defects (e.g., scars, uneven grain) and optimized part placement; the oscillating knife ensured smooth cuts on thick cowhide uppers without tearing.
Results:
Material waste reduced to 7-9%, saving approximately 80,000 RMB in leather costs annually.
Rework rate dropped to 1-2%, as edges met sewing tolerance requirements (±0.1mm) consistently.
Production efficiency improved by 30%—the machine handled 3 layers of thin leather linings simultaneously, cutting 200 sets of shoe components per hour (vs. 120 sets with manual methods).
Automotive interiors (e.g., seat covers, steering wheel wraps, door panels) demand ultra-high precision (tolerances as low as ±0.05mm) and compatibility with large, irregular leather hides. ITTA’s CNC blade cutting machines, with their large workbeds (up to 3m×2m), vacuum material fixation, and multi-axis motion systems, meet these strict requirements and support mass production of customized interior parts.
Background: The supplier produced leather seat covers for a popular NEV model, requiring 10,000 sets annually. Traditional cutting methods (CNC laser) caused two problems: ① Heat damage to leather surfaces (resulting in 5% of parts being scrapped due to discolored edges); ② Inability to handle 3mm-thick padded leather seat covers (laser cuts led to uneven foam layers).
Solution: The supplier deployed two ITTA CNC blade cutting machines with drag knife heads (for thin steering wheel wraps) and oscillating knife heads (for thick padded seat covers). The machines’ vacuum workbeds secured large leather hides (1.8m×2.5m) without slippage, and CAM software generated toolpaths that avoided stretching the leather during cutting.
Results:
Scrap rate from heat damage eliminated (0% vs. 5% previously), reducing material loss by 200,000 RMB yearly.
Successfully cut 3mm-thick padded leather seat covers with consistent foam and leather layer alignment, meeting the NEV brand’s quality standards.
Production capacity increased by 40%—the two machines handled 500 seat cover sets per day, enabling on-time delivery for the NEV’s monthly production of 8,000 vehicles.
Luxury goods (e.g., handbags, wallets, leather accessories) require meticulous attention to detail—from preserving leather texture to achieving precise cuts for decorative patterns (e.g., embossed logos, intricate stitching lines). ITTA’s CNC blade cutting machines use blade-based cutting (no heat) to protect natural leather textures and support flexible tool changes (for different blade geometries) to handle delicate materials like lambskin or crocodile leather.
Background: The workshop produced high-end leather handbags (500-800 pieces monthly) using manual cutting for small components (e.g., zipper tabs, interior pockets) and die-cutting for larger parts (e.g., bag bodies). Challenges included: ① Manual cutting of delicate lambskin pockets caused 12% of parts to tear; ② Die changes for custom handbag designs took 2-3 hours, delaying small-batch orders.
Solution: The workshop integrated ITTA’s compact CNC blade cutting machine (with automatic tool changers and ultra-thin drag knives). The drag knife cut lambskin pockets without applying excessive pressure, and the tool changer switched between 3 blade types (for different leather thicknesses) in 10 seconds. Additionally, the machine’s software imported AI-format decorative patterns directly, eliminating the need for physical dies.
Results:
Tear rate for lambskin components dropped to 1%, improving product yield and reducing material waste.
Custom order lead time shortened by 50%—die change time was eliminated, allowing the workshop to fulfill small-batch (20-30 pieces) custom handbag orders in 3 days (vs. 6 days previously).
Leather texture preservation: Post-cut inspections showed no surface damage to crocodile or python leather, maintaining the luxury brand’s premium quality standards.
Leather upholstery (e.g., sofas, armchairs, office chairs) involves large, irregularly shaped parts (e.g., sofa cushions, backrests) and thick leather (2-4mm). ITTA’s CNC blade cutting machines address industry challenges such as low nesting efficiency for large parts and inconsistent cuts on thick leather, while supporting batch production of standardized furniture components.
Background: The manufacturer produced 1,000 leather sofas yearly, using manual layout and band saw cutting. Key issues: ① 22% material waste due to poor nesting of large sofa backrest leather; ② uneven cuts on thick leather (leading to 10% of sofa cushions being reupholstered, as edges did not fit frame dimensions).
Solution: The manufacturer adopted ITTA’s large-format CNC blade cutting machine (workbed: 3.2m×2.1m) with advanced nesting software and high-torque oscillating knives. The software arranged 4-5 sofa backrest parts per hide (vs. 2-3 manually) and avoided hide defects; the oscillating knife cut 4mm-thick leather in 2 passes, ensuring clean edges.
Results:
Material waste reduced to 10%, saving over 120,000 RMB in leather costs per year.
Reupholstery rate dropped to 2%, as cut parts matched sofa frame dimensions with a tolerance of ±0.2mm.
Labor costs reduced by 25%—one operator managed the machine (replacing 2 manual cutters), and the machine ran 2 shifts daily with minimal supervision.
As a leader in CNC blade cutting technology for leather, Guangdong ITTA Digital Intelligence Technology Co., Ltd. stands out with three core advantages, tailored to solve industry pain points and create long-term value for customers:
ITTA combines robust hardware with intelligent software to deliver unmatched cutting accuracy—critical for leather’s natural variability:
Hardware Precision: Servo-driven motion systems (0.001mm positioning accuracy) and high-torque cutting heads (oscillating knives with 5,000-8,000 RPM adjustable frequency) ensure smooth cuts on curves and thick leather. Vacuum workbeds (120kPa suction force) lock irregular hides in place, eliminating slippage that causes size deviations.
Software Intelligence: Self-developed nesting software (with AI defect recognition) improves material utilization by 15-20% vs. manual layout—automatically avoiding hide scars or grain defects. It also supports one-click import of common design formats (DXF, AI, PLT) and integrates with production management systems, reducing file conversion errors and scheduling delays.
Real-World Impact: In automotive and luxury goods applications, this integration ensures ±0.05mm tolerance for seat covers and zero texture damage for crocodile leather—meeting the strictest industry quality standards.
ITTA rejects "one-size-fits-all" solutions, offering customizable configurations to match different leather types, part sizes, and production scales:
Cutting Head Versatility: Machines support quick switching between oscillating (thick leather, 1.5-4mm) and drag knives (thin leather, 0.3-1.2mm)—some models have automatic tool changers (10-second switch time) for multi-style production (e.g., footwear factories switching between shoe uppers and insoles).
Workbed Customization: From compact 1.2m×1.8m workbeds (small workshops making wallets) to extra-large 3.2m×2.1m workbeds (furniture factories cutting sofa backrests), ITTA provides sizes tailored to part dimensions, optimizing floor space and cutting efficiency.
Layer Cutting Adaptability: For mass production, machines handle 3-5 layers of thin leather (e.g., footwear insoles) simultaneously, while maintaining precision—doubling or tripling throughput vs. single-layer cutting without compromising edge quality.
ITTA focuses on long-term usability, with reliable hardware and comprehensive service to reduce total ownership costs:
Durable Components: Key parts (servo motors, linear guides, tungsten blades) are sourced from international brands, ensuring 8-10 years of stable operation. Blades last 800+ hours of continuous cutting—30% longer than generic alternatives—lowering consumable costs.
Rapid After-Sales Service: 7×24-hour online technical support (1-hour response time for faults) and regional spare parts warehouses (Guangdong, Fujian, Zhejiang) ensure common parts (blades, vacuum pumps) are delivered within 24 hours. On-site maintenance teams arrive within 48 hours for major issues, critical for high-volume factories running 2-3 shifts.
Free Testing & Training: ITTA offers free sample cuts (customers provide leather and patterns) to verify performance before purchase. Post-delivery, on-site training covers operation, software use, and troubleshooting—ensuring even new operators can manage complex projects within a week.
A CNC blade cutting machine is more than just equipment—it is a precision system that transforms digital designs into clean, accurate leather components. At Guangdong ITTA Digital Intelligence Technology Co., Ltd., our leather cutting machine solutions combine robust mechanics with advanced software to deliver superior results for industries worldwide. If you want to see how your own material performs, contact us today and upload a pattern for a free test cut. Our team will provide sample cuts or video demonstrations so you can evaluate the quality firsthand. For more information or to discuss your project needs, please contact us directly.
